Implementation effects

• Free from the hassle of pin setting
• Reduced pin setting time
• Prevents component damage caused by pin placement errors
• Improved printing stability!

Specifications

• MAX processing area：500㎜×400㎜
• Material:
  　Aluminum, MC nylon
  　※MC nylon electorical resistance value: 10 Ω/cm

Compatible with all printer manufacturers

Panasonic
SP10,SP18P,SP20P,SP28P,SP60,SP60,SP70,SPP,SPP-G1,SPPG3,SPPV,SPD,SPG,SPV
YAMAHA
YSP,YCP10,YGP,YVP-Xg
HITACHI
NP-04/05,TPM-5000,TPM-100,TPM-110
HG-700,HG-600
MINAMI
MK-868M,MK-878M,MK-878L,MK-888M
FUJI
GP-641,NXTP-M25,GPX
Tenryu Seiki
TSP-600,TSP-1100

Special specifications

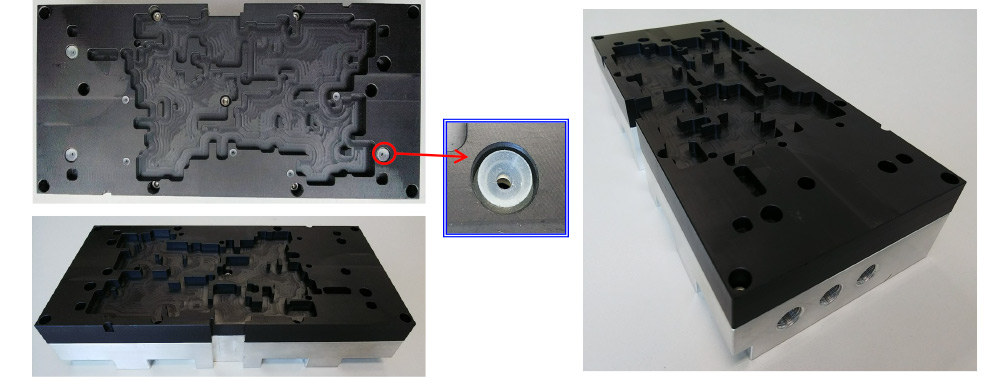

top-and-bottom separate type

for reducing process time & cost and its weight

It also prevents PCB lifting in areas with densely mounted components.
*Pins are optional.

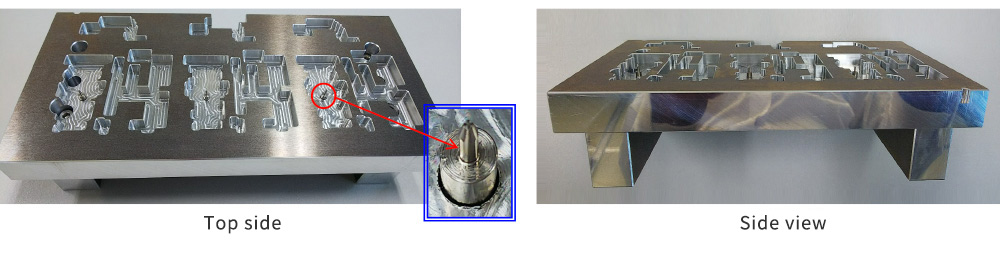

Suction type

excellent printing stability

By attaching suction rubber, printing stability will be improved.
*The suction rubber is optional.
